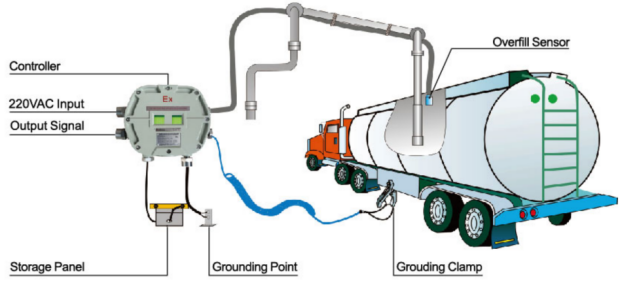

The Overfill Protection and Grounding Systems are specifically engineered for top-loading operations of road tankers, rail tank cars, and similar vessels. In the event of an overfill condition, the overfill sensors transmit a signal via the output relay to the terminal’s automated loading control system, thereby initiating an immediate shutdown of the loading operation. These systems deliver both comprehensive overfill protection and reliable grounding verification.
Input Power | 220VAC ± 10% |
Input Current | ＜15mA |
Monitoring Set Point | 10 ohms |
Spiral Cable | Extendable to 5.3meter (17.4 ft.) |
Output Signal | 30V DC, 10A/250C AC, 10A |
Ambient Temperature | -40℃ to +60℃ |
Sensor Cable Length | 6 meter (20ft) |
Alarm Volume | ＞90dB |
Ingress Protection | IP 66 |
Certification | ExidaIIBT4 Ga/Gb |
Features:
Audible and visible alarms |
Upon detection of a loss of grounding connection or an overfill condition, the system transmits a signal via the output relay to the terminal’s automated loading control system, thereby initiating an immediate shutdown of the loading operation. |
The overfill sensor incorporates continuous self-diagnostic monitoring with built-in alert functionality, ensuring reliable system performance at all times. |
