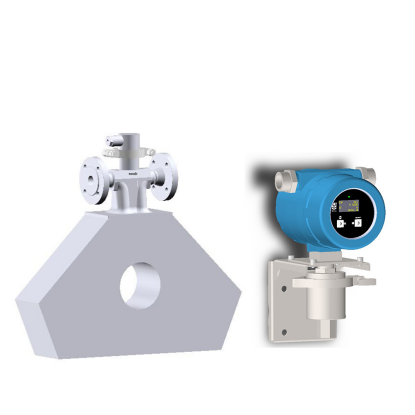

KMF25 Coriolis Mass Flow Meter

Specification

KMF25
Coriolis Mass Flow Meters

Flange Compatibility

DN25/DN32

Flow Range

1 ~ 20 t/h

Grade of Accuracy

±0.1%; ±0.15%; ±0.2%

Turndown

20:1

Zero Stability

0.76 kg/h

Density Range

0.2~2.0 kg/cm³

Density Error

± 0.0005g/cm³

Temperature Range

-240℃ ~ +350℃

Temperature Error

± 0.2℃

Explosion-proof Grade

Sensor: Ex ib IIC T1- T6 Gb

Transmitter: Ex d [ib] IIC T6 Gb

Protection Class

Sensor: IP66/IP67

Transmitter: IP66/IP67
