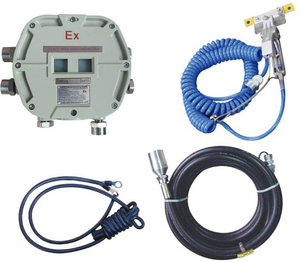

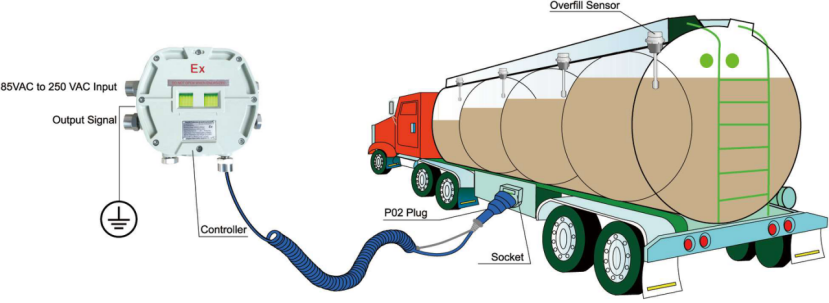

The ATEX-certified Overfill Protection and Earthing Systems are specifically engineered for bottom-loading operations of road tankers, rail tank cars, and similar vessels. Upon detection of an overfill condition, the overfill sensor transmits a signal via the output relay to the terminal’s automated loading control system, thereby initiating an immediate shutdown of the loading operation. These systems deliver both comprehensive overfill protection and reliable grounding verification.
Input Power | 85VAC to 250VAC, 50Hz |
Input Current | ＜60mA |
Alarm Type | Visible alarm |
Spiral Cable | Extendable to 8 meter (26ft.) |
Output Safety Parameters | Um:250VAC, Uo:21.42VDC, Io:149mA, Po:798mW, Co:1.19μF, Lo:6.4mH (for overfill sensor ) Um:250VAC, Uo:14.28VDC, Io:96.2mA, Po:343mW, Co:4.28μF, Lo:15.4mH (for earthing senor) |
Ambient Temperature | -20℃ to +55℃ |

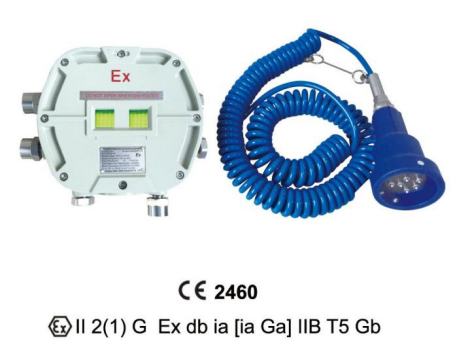

EU-Type Examination Certificate No. | Presafe 16 ATEX 8909X |
QAN Certificate No. | Presafe 16 ATEX 7744Q |
Applicable Directive: | 2014/34/EU |
Features:
Designed and manufactured in full compliance with API standards. |
Fully compatible with overfill prevention sensors and sockets conforming to API standards. |
Capable of monitoring up to six (6) overfill sensors simultaneously. |
