Control vapor loss at the liquid surface.

INTERNAL FLOATING ROOF SYSTEMS

Explore The Range
Discuss a Project
A complete range of engineered internal floating roofs and rim seals for petroleum terminals, refineries and chemical storage facilities.
banner-mobile
CATALOG OF INTERNAL FLOATING ROOFS

Three systems. One engineered fit.

PERFECT LOADING designs each system around tank geometry, stored-product compatibility, operating cycle and the emissions target. The result is a practical package covering the floating deck, rim seal, supports, guide devices and tank penetrations.
Final design values are confirmed against project specifications and the applicable edition of API 650 Annex H or other governing requirements.
PRODUCT RANGE

Select the right vapor-control architecture.

Compare construction, product contact, retrofit considerations and seal arrangements before moving into detailed engineering
Pontoon-Internal-Floating-Roofs
SKIN & PONTOON

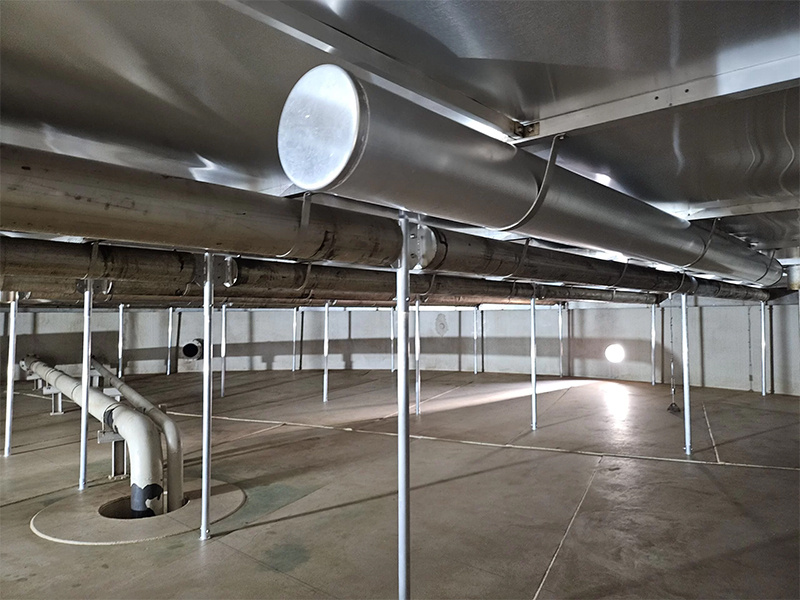

Pontoon Type Internal Floating Roof

A lightweight, modular deck supported by distributed pontoons for efficient installation and straightforward maintenance.
● Modular bolted assembly
● Distributed buoyancy
● Retrofit-friendly layout
Full-Contact-Inernal-Floating-Roofs
LIQUID-CONTACT DECK

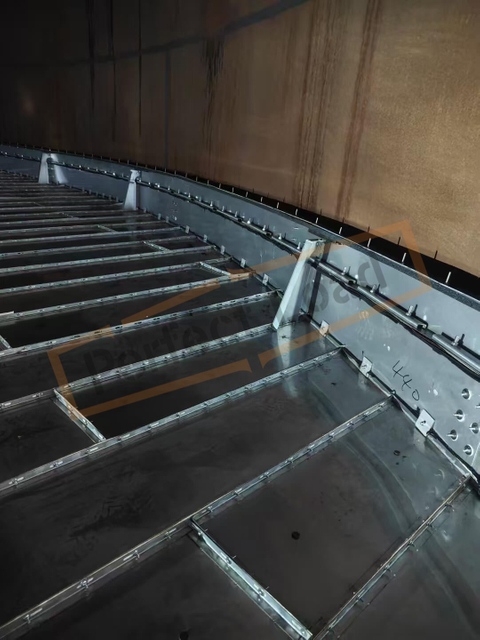

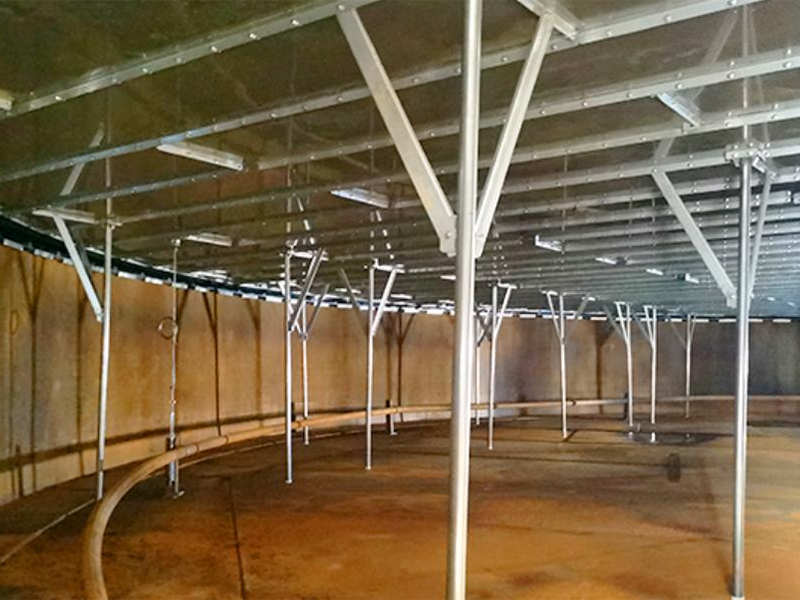

Full Contact Internal Floating Roof

A rigid, closed-panel deck that maintains contact with the liquid surface for demanding vapor-loss objectives.
● Continuous closed deck
● High structural stiffness
● Reduced underside vapor space
Floating-roof-seals
RIM SEALING SYSTEMS

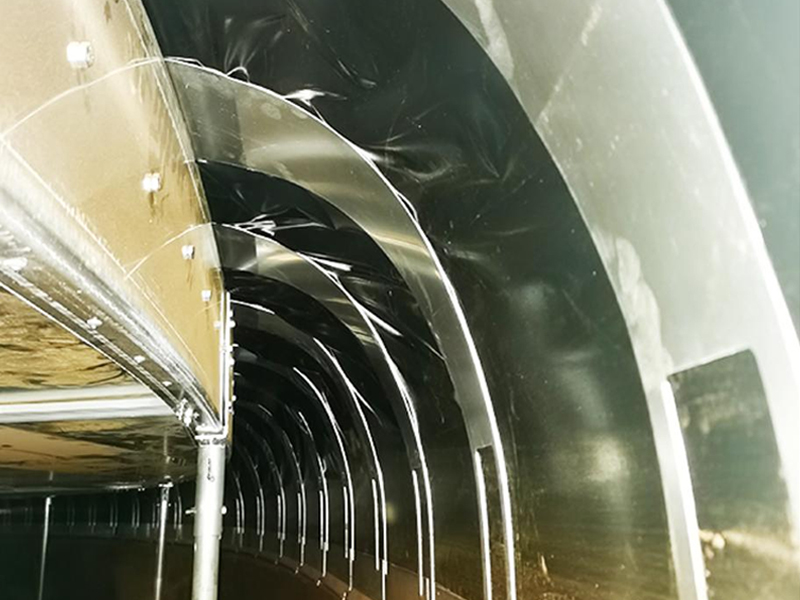

Floating Roof Seals

Primary and secondary rim sealing systems engineered to maintain contact through roof travel and shell variation.
● Multiple seal architectures
● Product-compatible materials
● New and retrofit supply
PROJECT PATHWAY

From tank data to site commissioning.

Our engineering team supports new-build and retrofit projects from early selection through installation guidance.
01



Define


Tank drawings, service data and operating envelope.
02



Engineer


Buoyancy, layout, seals and penetration details.
03



Supply


Prefabricated modules, hardware and documentation.
04



Support


Installation guidance, inspection and handover.

Need a product recommendation?

Send the tank diameter, stored medium, operating temperature and applicable standard. We will help define the right roof and seal combination.
