Specification | KMF80 |
Flange Compatibility | DN80/DN100/DN125 |
Flow Range | 10 ~ 200 t/h |
Grade of Accuracy | ±0.1%; ±0.15%; ±0.2% |
Turndown | 20:1 |
Zero Stability | 7.76 kg/h |
Density Range | 0.2~2.0 kg/cm³ |
Density Error | ± 0.0005g/cm³ |
Temperature Range | -240℃ ~ +350℃ |
Temperature Error | ± 0.2℃ |
Explosion-proof Grade | Sensor: Ex ib IIC T1- T6 Gb |
Transmitter: Ex d [ib] IIC T6 Gb | |
Protection Class | Sensor: IP66/IP67 |
Transmitter:IP66/IP67 |

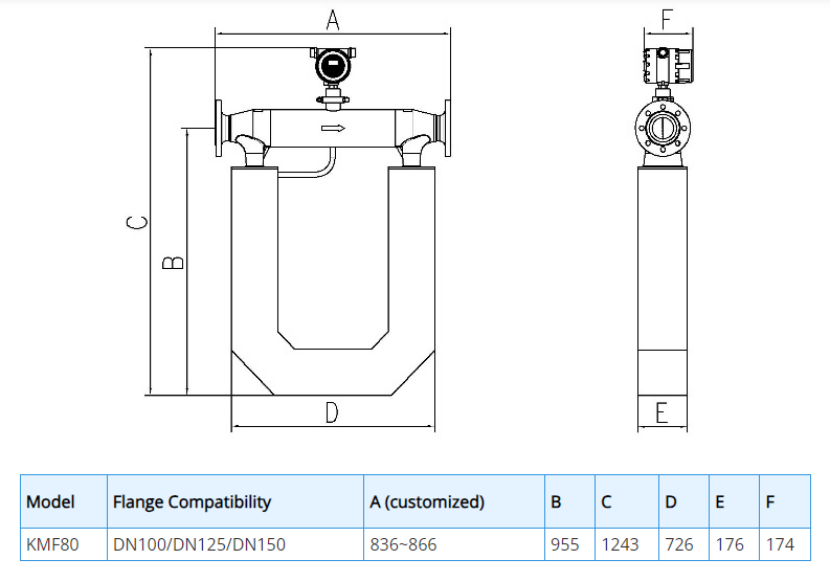

Outline Dimension
