Dry disconnect couplings aren’t just another piece of hardware—they’re a lifeline for industries handling fluids. They slash the risk of spills, protect workers from hazardous exposure, and save you from costly cleanups or fines. Whether you’re transferring high-value pharmaceuticals or flammable fuels, these couplings ensure every drop stays where it belongs.
Their ease of use, durability, and versatility make them a no-brainer for any fluid transfer system. Plus, with customizable options—materials, seals, sizes, and connections—you can tailor them to your exact needs. It’s like having a custom-built solution that checks every box: safety, efficiency, and reliability.
A dry disconnect coupling consists of two halves: a coupler (female) and an adapter (male). Each half has a valve—usually a poppet or butterfly valve—that stays closed when disconnected. When you connect the two halves, the valves open, allowing fluid to flow smoothly. Disconnect them, and the valves snap shut instantly, sealing the fluid inside both ends.
You push the coupler onto the adapter, twist or lock it (depending on the design), and you’re good to go. Many models feature a bayonet-style or cam-lock mechanism for a secure, no-fuss connection. Some even have safety interlocks to prevent accidental disconnection while fluid is flowing.
Here’s a rundown of Dry Disconnect Couplings standout features:
Disconnect with virtually zero leakage—think one or two drops at most.
Simple push-and-twist or single-handle operation makes connecting and disconnecting a breeze.
Mechanical interlocks and self-sealing valves prevent accidental spills or exposure to hazardous fluids.
Works with a wide range of fluids, from water to corrosive chemicals, thanks to customizable materials and seals.
Built to withstand tough conditions, from industrial plants to marine environments.
Designed for easy servicing, with accessible parts and minimal downtime.
These features make dry disconnect couplings a must-have for any operation where safety and efficiency are non-negotiable.
When picking a dry disconnect coupling, you need to know the specs to ensure it fits your needs.
Available in sizes from ½” to 6” (DN15 to DN150). Smaller sizes (e.g., ½” to 1”) are great for pharmaceuticals or low-flow applications, while larger ones (3” to 6”) handle bulk transfers like petroleum or chemicals.
Typically ranges from 10 to 25 bar (145 to 360 PSI).
Operates between -20°C to +80°C (-4°F to +176°F) for standard models, with specialized seals for cryogenic or high-temp applications.
Designed for high flow with low pressure drop, ensuring efficient transfers without bottlenecks.
Options include BSP/NPT threads, ANSI/DIN flanges, Tri-Clover (sanitary), or cam-lock fittings for flexibility.
These specs vary by brand and application, so always check with the Dry Disconnect Couplings manufacturer or PERFECT LOADING to match your system. It’s like choosing the right pair of shoes—size and fit matter for comfort and performance.
Dry disconnect couplings are built to last, and their materials reflect that. The choice of material depends on the fluid and environment.
The gold standard for chemical, pharmaceutical, and marine applications. It’s corrosion-resistant and tough, perfect for acids or saltwater.
Specialty alloys for extreme chemical resistance, used with highly corrosive fluids like sulfuric acid.
Used for linings or seals in sanitary or chemical applications, offering non-stick, chemical-proof surfaces.
Common seal materials include:
Resists chemicals and high temperatures, ideal for petroleum, acids, or LPG.
Great for petroleum-based fluids but less suited for extreme heat or aggressive chemicals.
Virtually inert, perfect for corrosive chemicals or sanitary applications like pharmaceuticals.
High-end perfluoroelastomers for extreme conditions, such as ultra-high temperatures or reactive chemicals.
Used for water or mild chemicals, often in food-grade applications.
Here are some key applications:
· Chemical Industry: Safely transfer acids, solvents, or caustic chemicals without spills, protecting workers and the environment.
· Petroleum and Gas: Handle gasoline, diesel, or LPG during tanker loading/unloading, minimizing costly losses.
· Pharmaceuticals: Ensure drip-free, sanitary transfers of vaccines, blood products, or active ingredients.
· Food and Beverage: Move liquids like milk, juice, or syrup with hygienic, FDA-approved couplings.
· Marine Operations: Facilitate ship-to-shore transfers of oil or chemicals, with robust designs for harsh conditions.
· Transportation: Used in rail and road tankers for quick, spill-free connections at terminals.
Dry disconnect couplings offer a variety of connection options to fit your system:
Common for smaller sizes, offering a secure, leak-free connection.
Ideal for larger sizes or permanent installations, like tank connections.
Quick-connect fittings for fast, tool-free setup, often used in industrial settings.

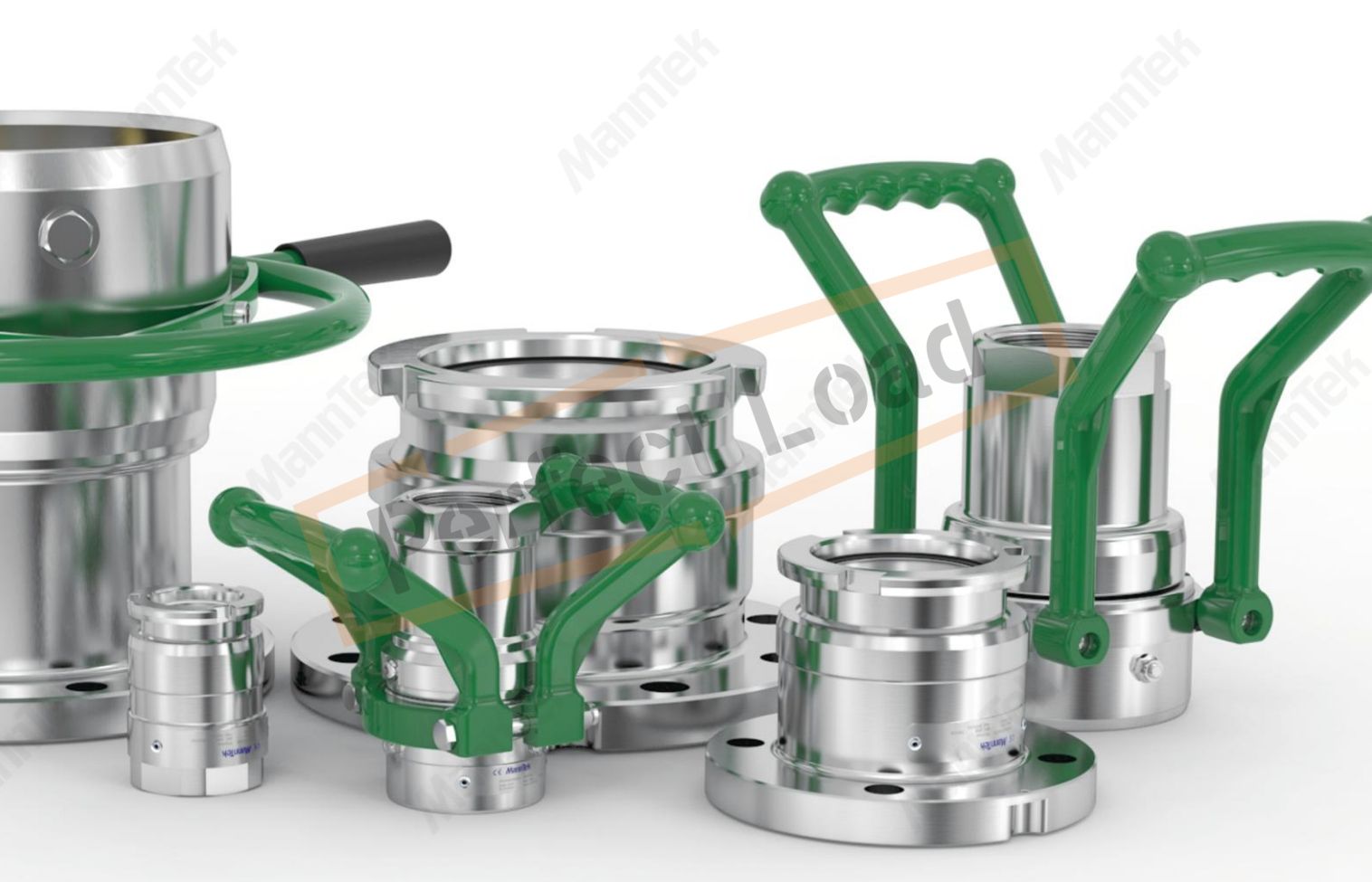

Found in MannTek or TODO couplings, providing a twist-and-lock mechanism for extra security.
These options make dry disconnect couplings adaptable to almost any setup, like a universal charger that works with any device.
Here’s how it goes:
Align the coupler with the adapter, push them together, and twist or lock (depending on the model). The valves open automatically, allowing fluid flow.
Fluid flows smoothly with minimal pressure drop, thanks to designs like butterfly valves that reduce flow restriction.
Turn the handle or unlock the mechanism, and the valves close instantly, sealing both ends. Pull the halves apart, and you’re done—spill-free.
Like any trusty tool, dry disconnect couplings need a little care to stay in peak condition. Here’s how to keep them running smoothly:
Check seals, valves, and locking mechanisms for wear, corrosion, or debris. A worn seal is like a leaky bucket—small drips add up.
Remove fluid residue or contaminants to prevent valve sticking. Use manufacturer-approved cleaners to avoid damaging seals.
Swap out O-rings or gaskets if they show signs of cracking or deformation. Keep a spares kit handy for quick fixes.
Apply light lubrication to valves or swivels to ensure smooth operation, per manufacturer guidelines.
Simulate connections/disconnections to confirm the valves seal properly.
If you’re still using standard couplings that leave a mess, it’s time to upgrade to dry disconnect couplings. Why risk spills, downtime, or safety hazards when a simple device can solve it all? Check out trusted brands to find the perfect coupling for your operation. Your team, your budget, and the environment will thank you.
Got questions about choosing the right coupling or maintaining your system? Drop a comment or reach out to us for expert advice. Let’s keep those fluids flowing cleanly and safely!
